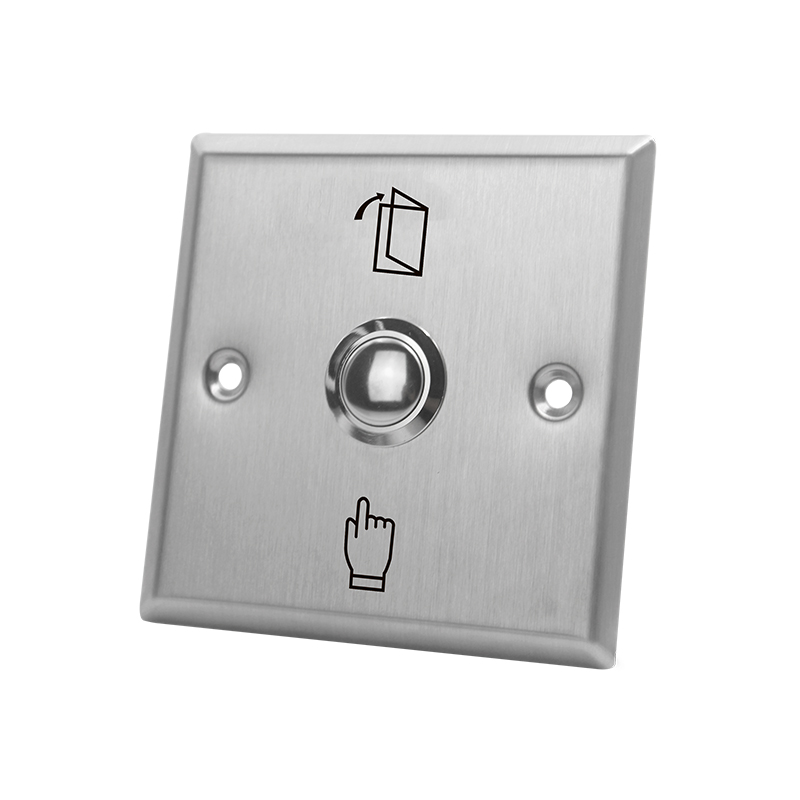

Access Control Exit Button S86(NO/COM) S86D(NO/NC/COM) - main image

Access Control Exit Button S86(NO/COM) S86D(NO/NC/COM) - image 1

Metal Case Switch

Access Control Exit Button S86(NO/COM) S86D(NO/NC/COM)

Model: S86(NO/COM) : S86D(NO/NC/COM)Brand: KeySecu

Best Seller

Model ：S86(NO/COM) : S86D(NO/NC/COM)

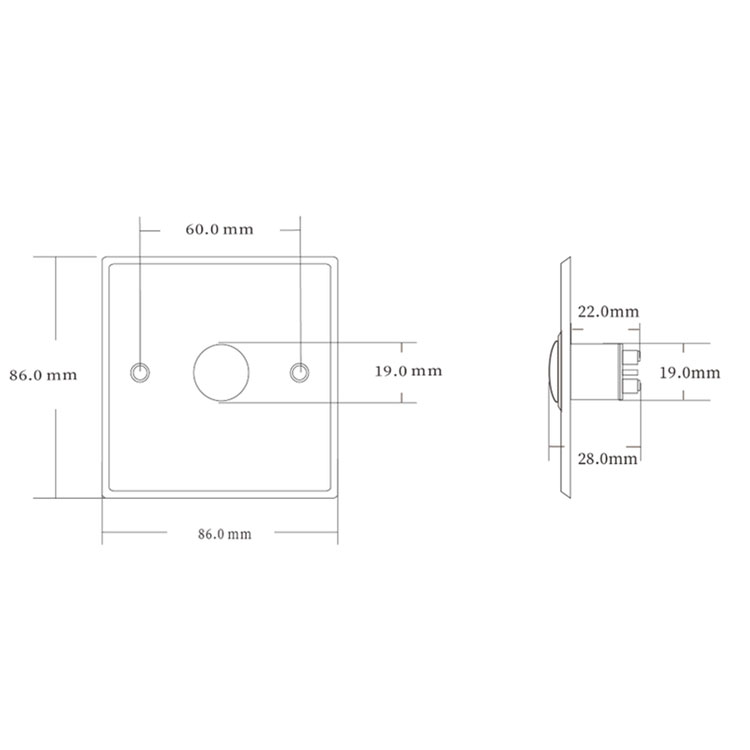

Size(mm) ：86L*86W
Power Supply ：DC12V
Output Contact ：S86(NO/COM) : S86D(NO/NC/COM)
Material ：0.8mm Stainless steel panel
Panel logo ：Customizable

Stainless steel Access Control Exit Button Switch

Request a Quote Download

Material	0.8mm Stainless steel panel
Power Supply	12VDC
Output Contact	S86(NO/COM) : S86D(NO/NC/COM)
Size(mm)	86L*86W
Panel logo	OEM

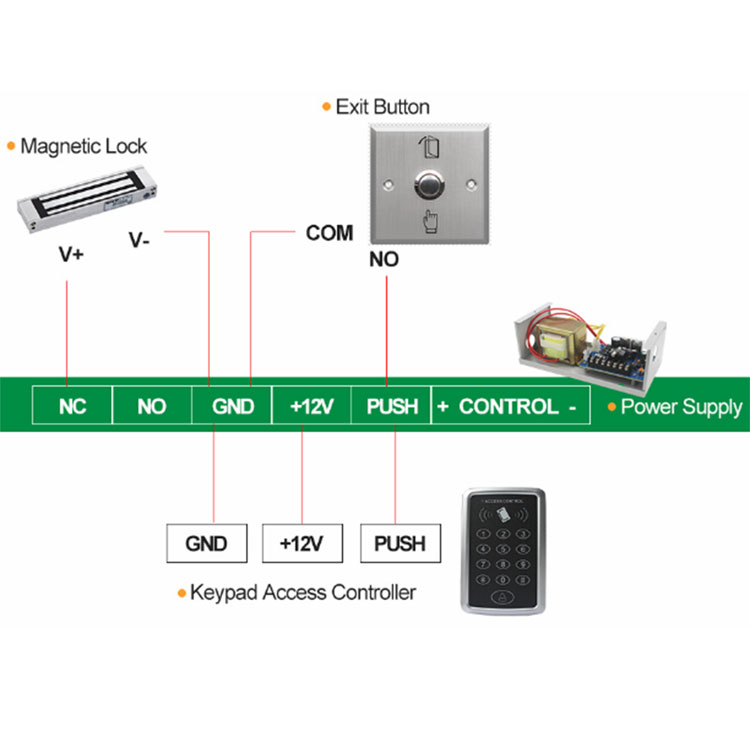

Access Control Exit Button S86(NO/COM) S86D(NO/NC/COM) - diagram 1

Keysecu S50 S86 User Manual.pdfPDF document · 138.7 KB Download

Access Control Exit Button S86(NO/COM) S86D(NO/NC/COM)

Access Control Exit Button S86(NO/COM) S86D(NO/NC/COM)
